Pseudo-Medical Monitor

Pseudo-Medical Monitor for Christmas Cheap Gift

In preparation for the expected Christmas Gift availability crisis, I present the Pseudo-Gift of the season. The time honored tradition of knockoff products hitting the market before Christmas is alive and well. What better than a multi-property knockoff device? Star Trek / Arduino / Medical knockoff device gift for everyone. This Pseudo-Medical Tricorder ripoff is the stocking stuffer for 2021.

Parts List

• Arduino Due Generic Clone (alternative: ITEADUINO DUE)
• Arduino Mega Prototype Shield Generic Clone (alternative: KEYESTUDIO)

• MLX90614 Contactless Temperature Sensor Generic Clone (alternative: )

• AMG8833 Thermal Imager Sensor Generic Clone (alternative: TinyCircuits)

• VL53L0X TOF Laser Distance Sensor Generic Clone (alternative: Onyehn)

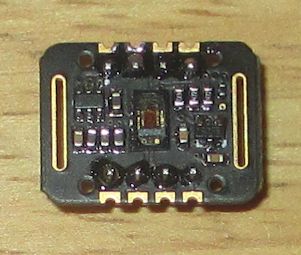

• MAX30102 Pulse and O2 Saturation Sensor Generic Clone (alternative: MH-ET Live)

• Capacitive Touch Fingerprint Scanner Generic Clone (alternative: DFROBOT)

• 160x128 LCD TFT SPI 1.8" Module with SD Socket Generic Clone (alternative: Heyaodz111208)

Wiring

Pin Mapping
Due Pin	Function	MLX90614	AMG8833	VL53L0X	MAX30102	FP Scan	TFT	SD Socket
3	Interrupt					IRQ
4	Interrupt				INT
5	Interrupt		INT
6	Digital I/O			GPIO1
7	Digital I/O			XSHUT
8	Digital I/O							SD_CS
9	Digital I/O						RST
10	Digital I/O						CS
11	Digital I/O						AO
18	TX_1					RX
19	RX_1					TX
20	SDA	SDA	SDA	SDA	SDA
21	SCL	SCL	SCL	SCL	SCL
SPI	MISO							SD_MISO
SPI	MOSI						SDA	SD_MOSI
SPI	SCK						SCK	SD_SCK
