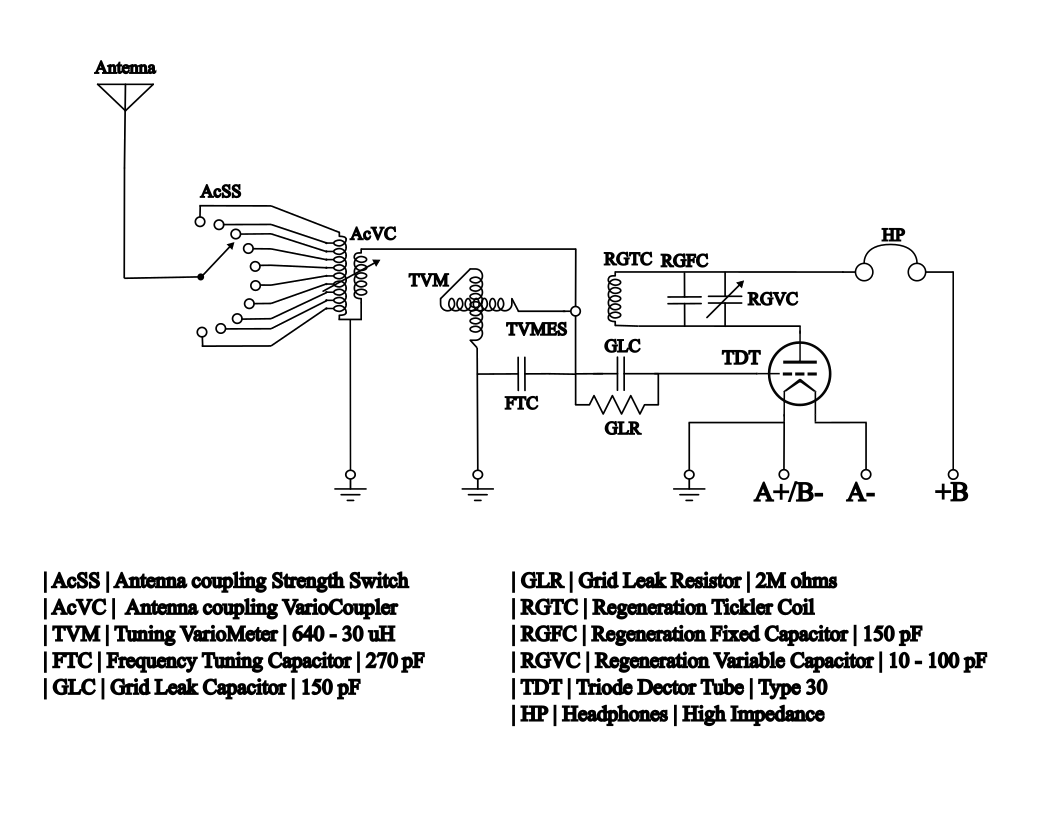

File:JAC OEVTC Basic-Built-Schematic.png

Size of this preview: 776 × 600 pixels. Other resolution: 1,056 × 816 pixels.

Original file (1,056 × 816 pixels, file size: 108 KB, MIME type: image/png)
